Professional ZGY Hanging Gear Industrial Speed Reducer for Belt Conveyor
Features :

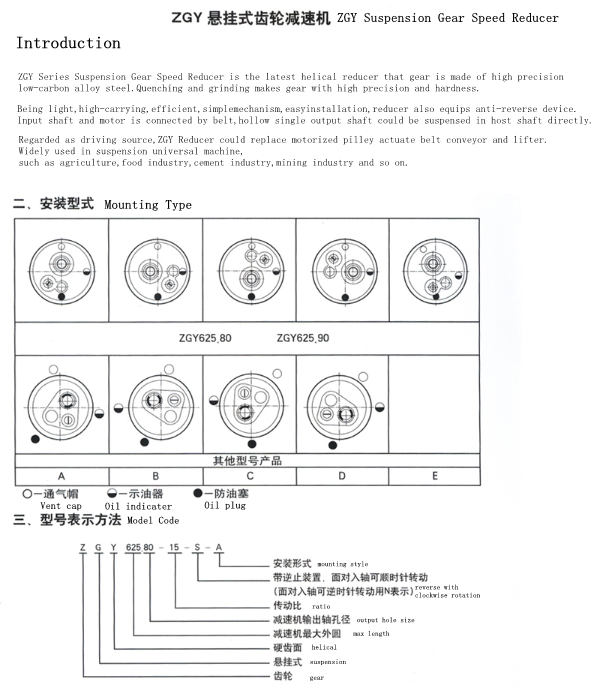

ZGY series gear speed reducer in one of the drive parts for belt conveyor. The drive parts for belt conveyor include electric pulley, ZGY series gear speed reducer, torque arm, belt wheel and electric motor.
Specifications:
Belt speed(m/s) | 1.25-1.8 | 1.6-1.8 | 1.8-2.5 | 1.4-2.5 | 1.6-2.5 | 1.8-2.5 | 2.5 | 2.2-2.5 | 1.8-2.5 |
Belt width(mm) | 800 | 800/1000 | 1000 | 1000 | |||||
Diameter of pulley | 500 | 630 | 800 | 800 | |||||
Rated power(kw) | 15 | 18.5 | 22 | 22 | 30 | 37 | 45 | 55 | 55 |
Reducer type | ZGY550 | ZGY625 | ZGY710 | ZGY850 | |||||
Speed ratio | 20.2 | 20.2 | 15 | 15 | 15 | 15 | 15 | 15 | 20.3 |
Advantages :
- Whole program including units of high quality Screw Jacks and T steering gearbox, motor etc.
- Professional technique designing engineers
- Rich designing and processing experiences
- High product quality guaranty
- Good after-sale service
- Perfect sales director
Applications :
It is widely used in agriculture, business, cement industry, mining, concrete mixing etc.
Rated power:15kw-55kw; Belt Speed:1.25-2.5m/s
Our Services:
1. Have many years of production experience.
2. We are manufacturer, has the independent right to export, price better, can control the quality and delivery time.
3.The photos and films of production process will be reported to you.
4. Professional engineers for your design, drawing, ensure the quality of production if non-standard products.
Payment and delivery :
Packaging Details: | Inner package:Strong enough water-proof plastic bags Outer package: standard wooden case |
Delivery Detail: | 10-30 days according to the quantity of the gear reducers |
